Voltage of DC PWM dimming lithium iron phosphate rechargeable batteries solar light system
PWM dimming is good for constant voltage LED light bulbs, Because when PWM output high level, The voltage of PWM dimmable LED light bulbs is same as his operation voltage. It will not work with LED light bulbs that with internal driver inside (because mostly LED driver use for control the current of LED, Constant current controlling).
PWM dimmer is low voltage operation dimmer. DC dimmer PWM dimming lithium iron phosphate rechargeable batteries solar light system, 3.2V lithium iron phosphate rechargeable batteries solar light system, 3.2V lithium ion battery charging solar lights, 6.4V lithium ion battery charging solar lights, 9.6V lithium ion battery charging solar lights, 12.8V lithium ion battery charging solar lights, 19.2V lithium ion battery charging solar lights, 48V lithium iron phosphate rechargeable batteries solar light system.
Lithium iron phosphate battery Cell voltage
Minimum discharge voltage = 2.0-2.8 V
Working voltage = 3.0 ~ 3.3 V
Maximum charge voltage = 3.60-3.65 V
Because of the nominal 3.2 V output, four cells can be placed in series for a nominal voltage of 12.8 V, Six cells can be placed in series for a nominal voltage of 19.2 V. Along with the good safety characteristics of LFP batteries, this makes LFP a good potential replacement for lead-acid batteries in applications such as automotive and solar applications, provided the charging systems are adapted not to damage the LFP cells through excessive charging voltages (beyond 3.6 volts DC per cell while under charge), temperature-based voltage compensation, equalisation attempts or continuous trickle charging. The LFP cells must be at least balanced initially before the pack is assembled and a protection system also needs to be implemented to ensure no cell can be discharged below a voltage of 2.5 V or severe damage will occur in most instances, due to irreversible deintercalation of LiFePO4 into FePO4.
So that the operation voltage range of led bulbs for DC dimmer PWM dimming lithium iron phosphate rechargeable batteries solar light system will be below list:
6.4V lithium iron phosphate rechargeable batteries solar lights 5.6V~7.2V
9.6V lithium iron phosphate rechargeable batteries solar lights 8.4V~10.8V
12.8V lithium iron phosphate rechargeable batteries solar lights 11.2V~14.4V
19.2V lithium iron phosphate rechargeable batteries solar lights 16.8V~21.6V
48V lithium iron phosphate rechargeable batteries solar lights 42V~54V
2W 3.2V 3.7V 6.4V 48V Dimming dc led lights, led bulb for extractor pwm voltage DC dimmer lithium iron phosphate rechargeable batteries solar light system

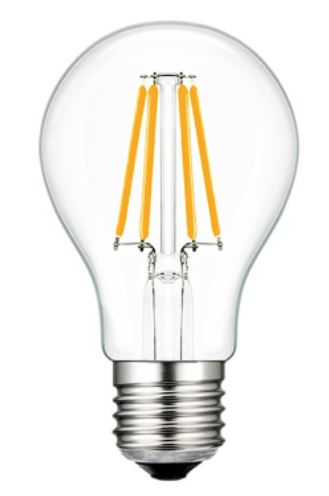

6W A19 globe led bulb for battery charging dimming lighting, Led bulb for pwm output voltage 12v, 24V, 36V, 48V, 60V

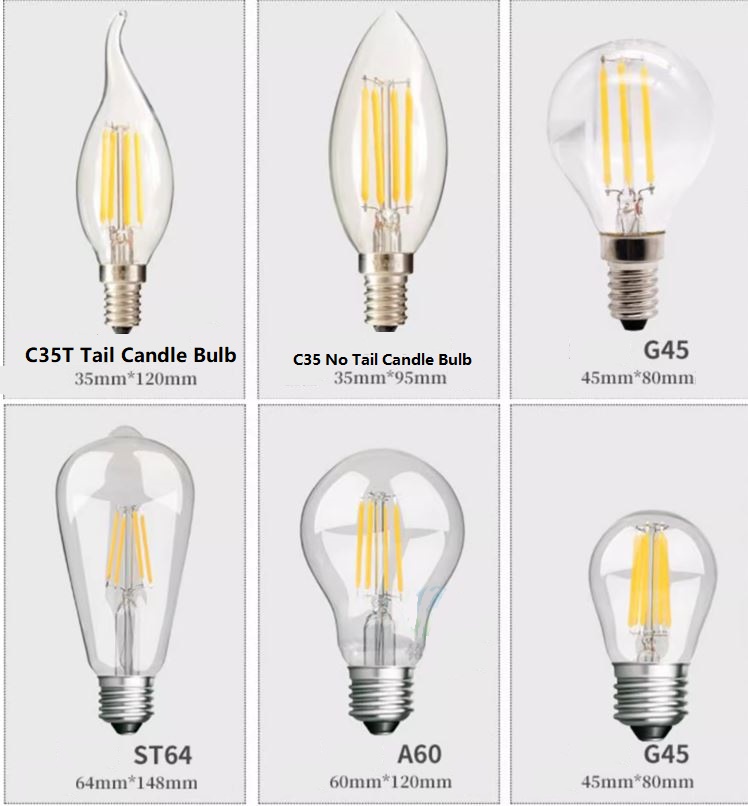

4W 12V 24V PWM dimmable led bulb perfect for DC Dimmer Applications to dimming lighting using battery charge system

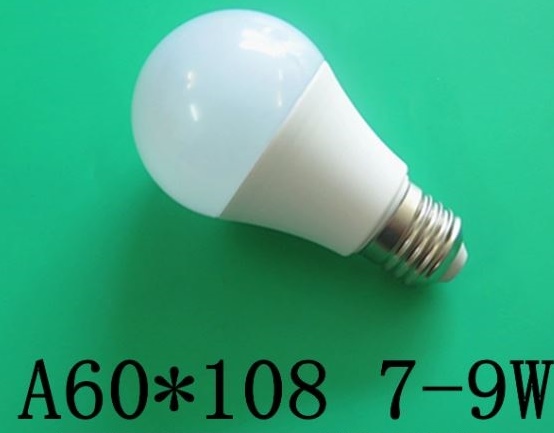

8W A19 Dimming dc led lights for DC dimmers, led bulb for extractor pwm voltage 12V 24V 36V 48V AC100-277V perfect for lighting using battery charge system
14W A22 Dimming dc led lights for DC dimmers, led bulb for extractor pwm voltage 12V 24V 36V 48V AC100-277V perfect for lighting using battery charge system
