M3 M4 M5 M6 M8 Laser Sensor Visible Light Sensor Micro Diffuse Reflectance Photoelectric Switch With Visible Red Laser For Precise Object Detection

M3 M4 M5 M6 M8 Laser Sensor Visible Light Sensor Micro Diffuse Reflectance Photoelectric Switch With Visible Red Laser For Precise Object Detection

The M3 M4 M5 M6 M8 Laser Sensor is a high-performance photoelectric sensor designed for precise object detection in industrial automation. It utilizes a visible red laser beam to detect objects by either blocking or reflecting the light.

A new generation of optical switching equipment with delay, expansion, external synchronization, anti-interference, and high reliability, dedicated to self-diagnosis of regional stability and intelligent features.

Specifications:
660NM red Visible Light
Fitting Material: Stainless Steel pipe
No-load Current: 9mA
Max-load: 5W
Detect Distance: 5mm~200mm option base on different type
Operating Frequency: 100 Hz
Operating Voltage: DC 10 ~30 V
Operating Temperature Range: -0 to 50°C
IP65
Colour: Blue

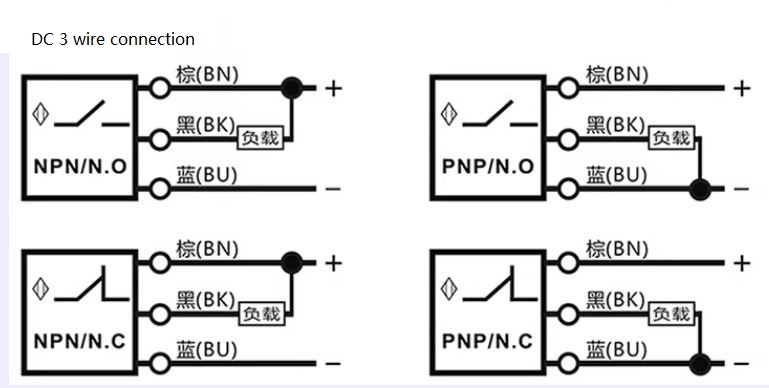

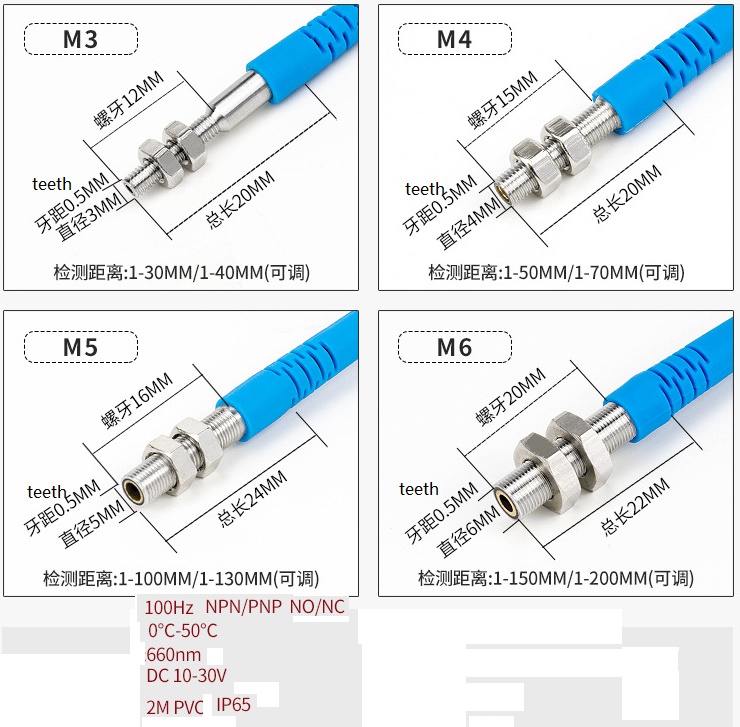

Option (Please make a comments what you need): Screw M3,M4,M5,M6, M8. Detect Distance from 5mm to 200mm. Switch type: NPN/N.C, NPN/N.O, PNP/N.C, PNP/N.O
Features:
Strong anti-jamming capability.
Simple installation, convenient, and safe.
Automatically locked in the daytime to save energy.
Standby power is small, long service life, and can effectively prolong the service life of the load.
