5-24V Addressable Programmable Controller with SD Card K-8000CK

  • Model: K-8000CK-AddressProgrammable
  • Shipping Weight: 2.4lbs

Ask a Question

$124.00

Add to Cart:

5-24V Addressable Programmable Controller with SD Card -off-line;8192 pixels controlled;SPI signal output

K-8000CK system features:
1. 32 level -65536 gray level control, software Gamma correction processing.
2.  to support a variety of points, lines, surface light source, support a variety of rules, shaped processing.
3.  the controller 8 port output, each port can bring up to 512/1024 lights (DMX lamps up to 512 pixels).
4.  play content stored in the SD card, SD card can store up to 32 effects files, SD card capacity support 128MB-32GB.

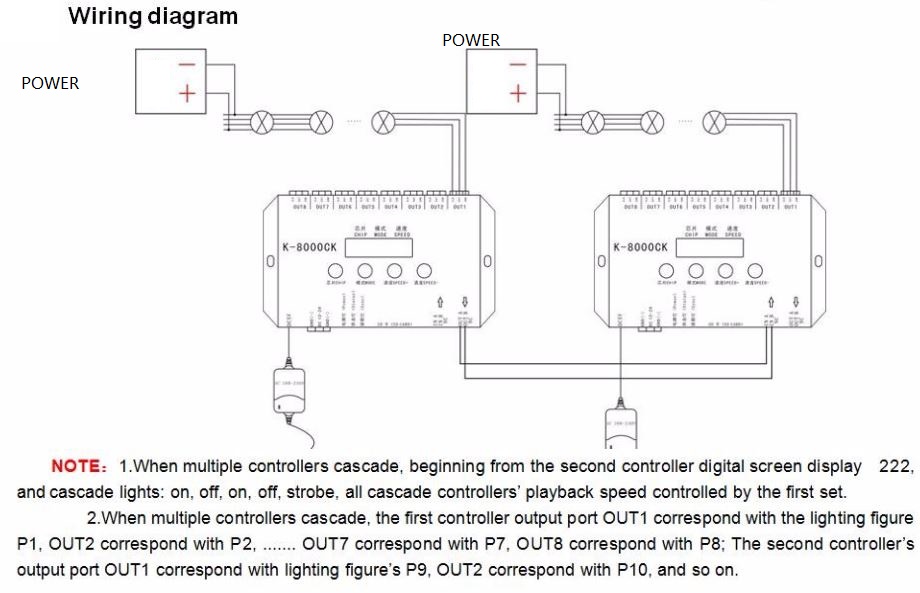

5.  the controller can be used alone, but also more than cascade use, cascade use of optical isolation: anti-interference, better stability, between the two cascade distance Up to 150 meters, need to use 0.5M2 pure copper power cord.
6.  the controller with a chip chip can be locked in the software with the IC can also be locked in the software, by adjusting the controller chip button to select the load
IC, this program is more flexible and convenient.
7.  for the DMX lamps IC controller comes with write address function; In addition with the Division I 2016 LedEdit-K V3.26 version of the software can be a key Write function set.
8.  support for the fixture for the 4-channel (RGBW) pixels, or split into single-channel point pixels.
9.  enhanced TTL and 485 differential (DMX) signal output.
10.  the controller comes with test results are: 1. Red, green, blue and white black jump; 2. Red, green, blue and white jump gradient; 3 red, green, blue and white.

Note:
1. the controller with light fixture 512 point speed can reach 30 frames / sec, 768 points speed can reach 25 frames / sec, 1024 point speed can reach 22 frames / sec (The above parameters to 1903 protocol class IC data, for example, there will be differences between different IC)
2. the international standard DMX512 (1990 protocol) with a maximum load of 512 pixels. When the load for the international standard 170 pixel pixels speed up to 30 frames / sec, 340 Point pixel speed of about 20 frames / sec, 512 pixels at a speed of about 12 frames / sec

Support the chip (PC software selected K-8000-RGB):
00: UCS1903,1909,1912,2903,2904,2909,2912; TM1803,1804,1809,1812;
Lt; / RTI & gt; LX3203, 1603, 1103; GS8205,
8206; SK6812 (maximum with 1024 * 8 = 8192 pixels)
01: SM16716,16726 (maximum light 1024 * 8 = 8192 pixels)
02: P9813 (maximum with 1024 * 8 = 8192 pixels)
03: LPD6803 (maximum with 1024 * 8 = 8192 pixels)
04: LX1003,1203 (maximum with 1024 * 8 = 8192 pixels)
05: WS2801 (maximum light 1024 * 8 = 8192 pixels)
06: LPD1886 (maximum with 1024 * 8 = 8192 pixels)
07: TM1913 (maximum with 1024 * 8 = 8192 pixels)
08: TM1914 (maximum with 1024 * 8 = 8192 pixels)
09: P9883, P9823 (maximum light 1024 * 8 = 8192 pixels)
10: DMX (maximum with 512 * 8 = 4096 pixels, it is recommended to carry ≤ 320 * 8 = 2560 pixels)
11: DMX 500K (maximum light with 512 * 8 = 4096 pixels, it is recommended to carry ≤ 320 * 8 = 2560 pixels)
12: DMX 250K-CZF (maximum light with 512 * 8 = 4096 pixels, it is recommended to carry ≤ 320 * 8 = 2560 pixels)
13: DMX 250K-CZF (maximum with light 512 * 8 = 4096 pixels, it is recommended to carry ≤ 320 * 8 = 2560 pixels)

Note: 1. With the RGBW four-channel lighting is to choose K-8000-RGBW.
      2. With a single channel lighting is to choose K-8000-W, this time for a channel represents a point pixel, the software effect to do white.

Specific parameter:
Type: SD card
Capacity: 32MB-128GB
Format: FAT or FAT32
Storage file: *.led
Physical parameter:
Working temperature: -30 °C- 85°C
Working power:DC 5V -24V input
Power consumption: 5W
Data transmission interface: 3 pin binding post
Weight: 1.1Kg
