12W LED light PCB board use 9V High Volt LED Chip parallel directly in order to avoid one being defective and the whole light will not turn on

  • Model: 12LEDS-1W-9V-Parallel-ZSDK
  • Shipping Weight: 0.07 lbs

(image for) Ask a Question

$0.84

Please Choose:

The light output Color Temperature and Angle

Color Temperature






maximum characters allowed


Min:  10
*Mixed OFF
Add to Cart:

LED light PCB board, 12V constant voltage PWM dimmable LED light for DC dimmer. 12V LED light that uses 9 V High Volt 2835 SMD chip to connect parallel LEDs directly, Avoid one light that is not working and the whole light will not turn on.

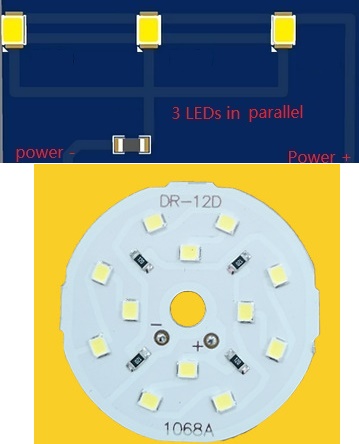

3 LEDs are wired parallel so that they share a current-limiting resistor like in the figure. All 3 LEDs (with common resistor) are connected in parallel to the power supply.

LEDs running in parallel using LEDs that are connected using a High Volt 2835 SMD Chip. We can expect some variation in forward current between an LED. The variance could be decreased by using LEDs that are from the same production lot, but companies don't depend on this and use "binning" to divide LEDs into lots that are matched for sensitive applications.

The High Volt 2835 SMD Chip 1W 130 - 140lm has option 3V 6V 9V 36V.High high brightness, compact design and the industry standard smd packaging 2835 0.2W 0.5W 1W that comes with several voltage choices of 3V 6V 18V 36V for a wide range of various lighting application requirements. A high-quality compact design, extensively used in numerous lighting applications.

Please contact us If you need 24V 28V 32V 36V 48V LED light using High Volt 2835 SMD Chip to parallel LEDs directly.

Below listed are Different color temperature option, But the price and MOQ for other color are quite different, Please contact us.
Golden light 1600-1800K
Warm white to yellowish 2600-2800K
Warm white 3000-3200K
Neutral white 3900-4200K
Cool white 6000-6500K
Cool white 10000-12000K
red color 620-625nm
blue color 465-475nm
Yellow color 590-595nm
Orange 600-605nm
Emerald green 520-525nm
Yellow-green light 570-572nm

Chip leds 12 PCS
12 Connect in Parallel
Size: 46mm diameter
Color Rendering Index: Ra80
Color Temperature:
Warm White 2800-3200K, Cool White Nature white 6000-6500k, 4000k4500k
Beam angle: 120 degree
Lifespan:50,000 hrs Housing
material: Aluminun
Material thickness: <1.5mm
Certification: CCC CE and Roh
Notes:
1. The led light board can directly work with DC 12V. Contact us if require a 24V 48V LED light with the High Volt 2835 SMD Chip. It can be used to connect parallel LEDs.
2. LED PCB board light source Aluminum plate base board has to be paired with a heatsink or cooling fan. The majority of the aluminum and coper housing bodies make a great heatsink.
3. Ensure that the wire and LED welding temperature is lower than 85 (or less)degC Celsius
